Hook More Fish with Garmin EchoMap's Sonar Power

1. Traditional CHIRP Sonar

A classic, reliable view with crisp fish arches—perfect for depth, temperature, speed, and time. Tap Menu to configure depth alarm, frequency bands, or fish ID.




2. ClearVü (UHD Scanning Sonar)

Ultra High Definition makes structure pop—down to twigs, rocks, and vegetation. SideVü delivers sharp side images with excellent target separation.



3. Dual & Triple Screen Combos

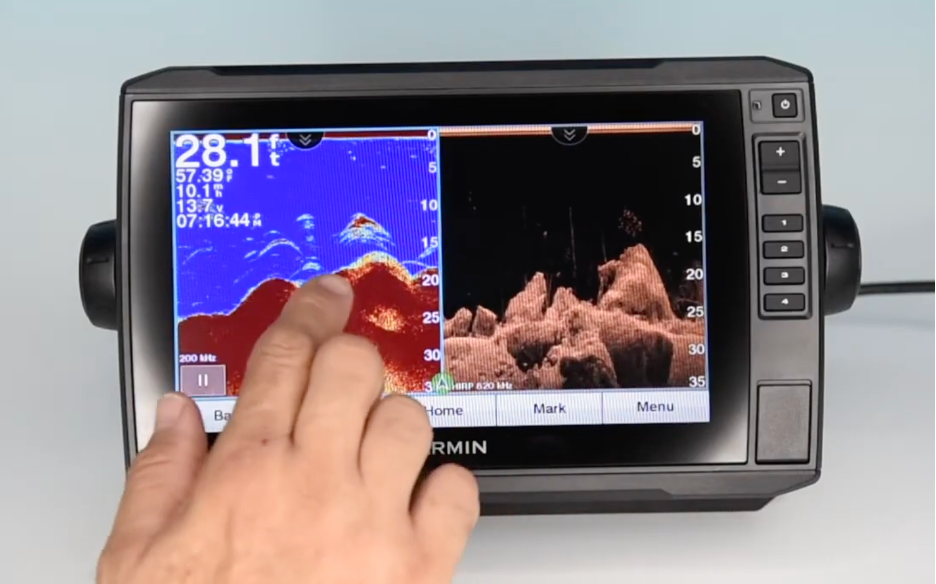

  • Dual view: Traditional + ClearVü for fish and structure at once

  • 3‑in‑1 combo: CHIRP, ClearVü, SideVü all in one layout—tap any pane to zoom

  • Split-screen frequencies: Compare low/high frequency echoes side by side

  • Flasher screen: Real‑time beam intensity, great for vertical jigging


4. Data & Record Screens

  • Data graphics: Visual logs of temperature, depth, and more over time

  • Sonar recordings: Review past sonar sessions or share with friends


5. Panoptix LiveScope Sonar (Optional)

A game‑changer—real‑time sonar that shows fish and structure like live video. Requires Panoptix module + transducer, sold separately.

LiveScope views:

  • Live Vü Forward: Beam forward/down—see whatever's swimming ahead

  • Live Vü Down: Directly under transducer; ideal for seeing strikes in real time

  • Front View: Extend view ahead—great depth and detail

  • RealVü 3D Forward & Down: Detailed 3D scans ahead or beneath

  • RealVü 3D Historical: 3D map of terrain passed over

  • LiveScope & LiveScope Down: Wide-angle, high‑speed live imaging in shallow water




Why EchoMap Sonar Types Matter

  • CHIRP: Reliable fish arches and clear depth/temperature data

  • ClearVü/SideVü: Detailed visuals of structure and fish hiding spots

  • Split-screen modes: Compare frequencies or sonar types in real time

  • Flasher: Great for jigging—see bite moment as it happens

  • Panoptix LiveScope: Revolutionary, video-style fish tracking underwater



🧰 Summary Table

Mode

Strength

Best Use

Traditional CHIRP

Strong target separation

Depth-based fishing, general use

ClearVü/SideVü

Structural imagery

Cover, reefs, ledges

Split/Flasher

Comparison & real‑time feedback

Jigging, experimenting

LiveScope

Real-time video-like feed

Shallow/clear water, precise strikes



Final Take

Garmin’s EchoMap lineup ranges from powerful traditional sonar to mesmerizing LiveScope video-style views. Each mode adds depth to your angling toolkit—literally. Use the bold images suggested above to bring your blog post to life and guide readers through the visual richness and practical edge these sonar options offer.

Tight lines and happy fishing!
